Product Introduction
This advanced wheel-footed robotic platform offers exceptional adaptability via a wide array of power and communication interfaces — making it ideal for mission-critical uses: security patrols, power facility inspections, logistics transport, and search & rescue. It balances lightweight design, high payload capacity, extended endurance, robust protection, and agile stable locomotion.
A reinforcement learning motion model enables impact resistance, fall recovery, and terrain adaptation; its multi-modal sensing suite supports mapping, autonomous navigation, and target recognition.
Basic Parameters
| Category | Specification |
|---|---|
| Dimensions (Standing) | Approx. 80 × 50 × 60 cm (L × W × H) |
| Dimensions (Folded) | Approx. 89 × 50 × 26 cm (L × W × H) |
| Weight | Approx. 20 kg (including battery) |
| Battery | Capacity: 20 Ah |
| Operating Endurance (with load) | > 2 hours |
| Maximum Payload | 25–30 kg |
| Max Climbing Height Difference | > 22 cm |
| Slope Traversal Capability | > 45° |
| Legged Mode Speed | > 4 m/s |
| Wheeled Mode Speed | > 8 m/s |
| Obstacle Crossing Height | 80 cm |
| Ditch Crossing Width | 80 cm |

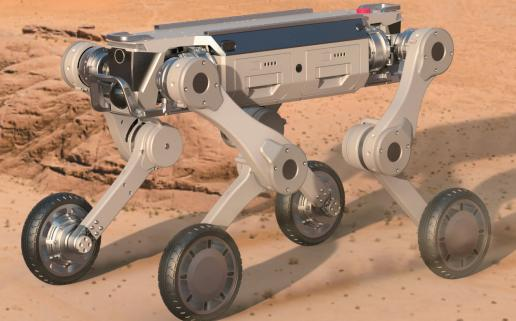

| Wheel/Foot Transition | Quick-detach, quick-swap design |
| Operating Temperature | –20℃ to 55℃ |
| Protection Rating | IP67 (dustproof and waterproof up to temporary immersion) |
| Expansion Interfaces | Communication: Gigabit Ethernet, USB, Serial Port Power: 5 V / 12 V / 24 V / 48 V (up to 80 W) |
